Description

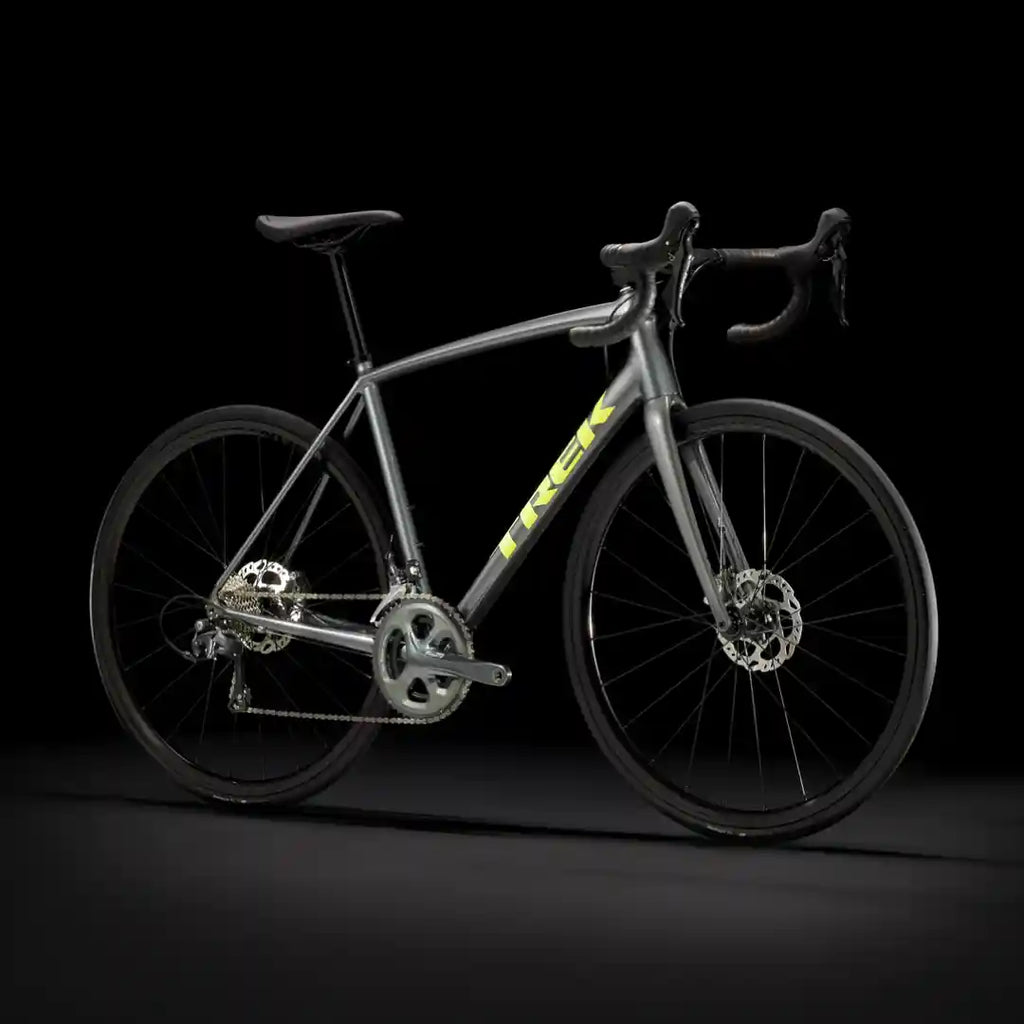

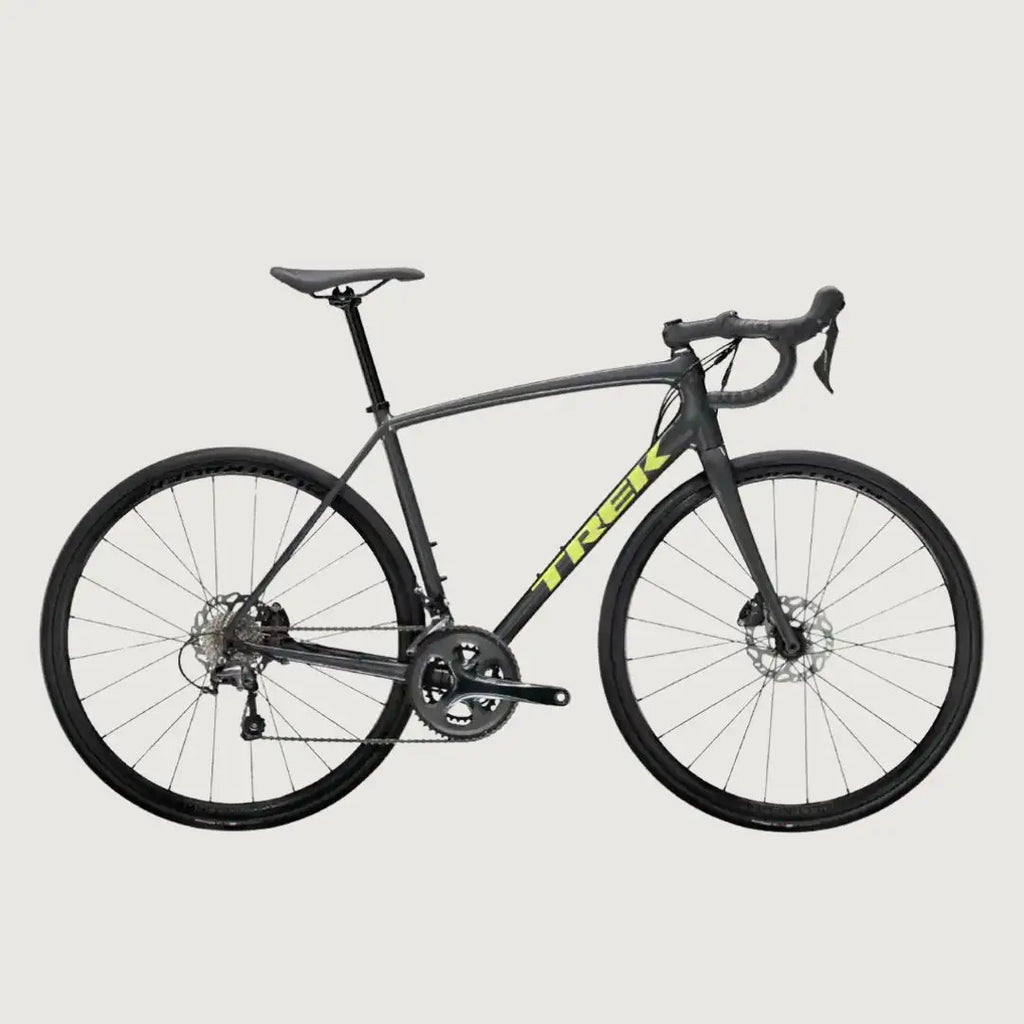

The Émonda ALR 4 Disc is a high-performance aluminum road bike crafted for agility and speed, boasting powerful hydraulic disc brakes and a quality drivetrain. It delivers the handling and feel of a premium carbon bike at a fraction of the cost. Comes without Pedals.
Specifications:
Frameset:

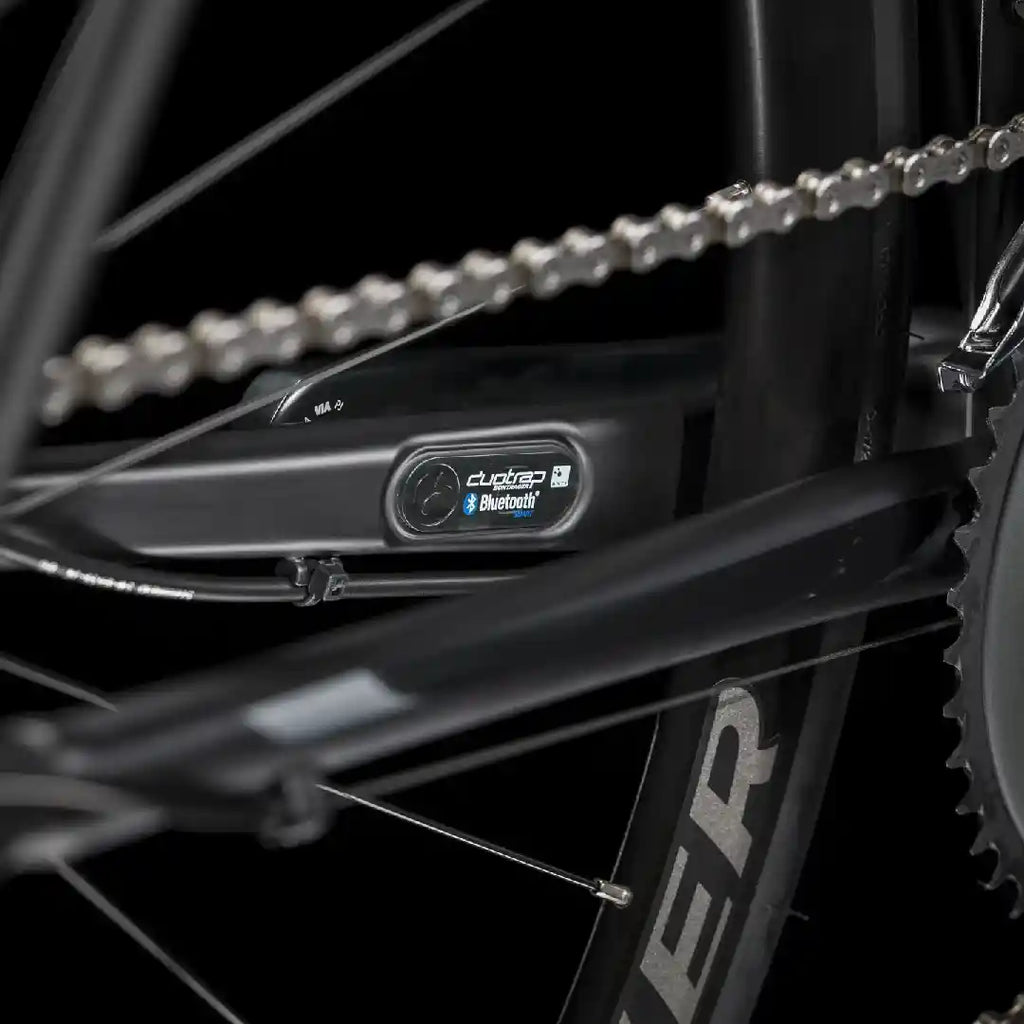

- Frame: Ultralight 300 Series Alpha Aluminium featuring Invisible Weld technology, tapered head tube, Control Freak internal routing, DuoTrap S-compatible, flat-mount disc, and 142x12 mm thru axle.
- Frame Fit: H2
Weight:
- Weight: 56 - 9.33 kg/20.58 lb
- Weight Limit: Maximum total weight limit of 125 kg (275 lb) for the bike, rider, and cargo combined.
Drivetrain:
- Shifter: Shimano Tiagra R4725 with short-reach lever, 10-speed.
- Front Derailleur: Shimano Tiagra 4700, braze-on.
- Rear Derailleur: Shimano Tiagra 4700, long cage, with a maximum cog of 34T.
- Crank: Shimano Tiagra 4700, with variations in length based on size.
- Bottom Bracket: Shimano BB71, 86.5 mm, PressFit.
- Cassette: Shimano Tiagra HG500, 12-28, 10-speed.
- Chain: Shimano Tiagra HG54, 10-speed.
Wheels:
- Front Hub: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle.
- Rear Hub: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle.
- Rim: Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve.
- Tyre: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x25 c. Accommodates a maximum tyre size of 28mm.
Components:
- Saddle: Bontrager Montrose Comp with steel rails, 138 mm width.
- Seatpost: Bontrager Comp, 6061 alloy, with variations in length based on size.
- Handlebar: Bontrager Comp VR-C, alloy, with variations in reach, drop, and width based on size.
- Handlebar Tape: Bontrager Supertack Perf tape.
- Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, with variations in length based on size.

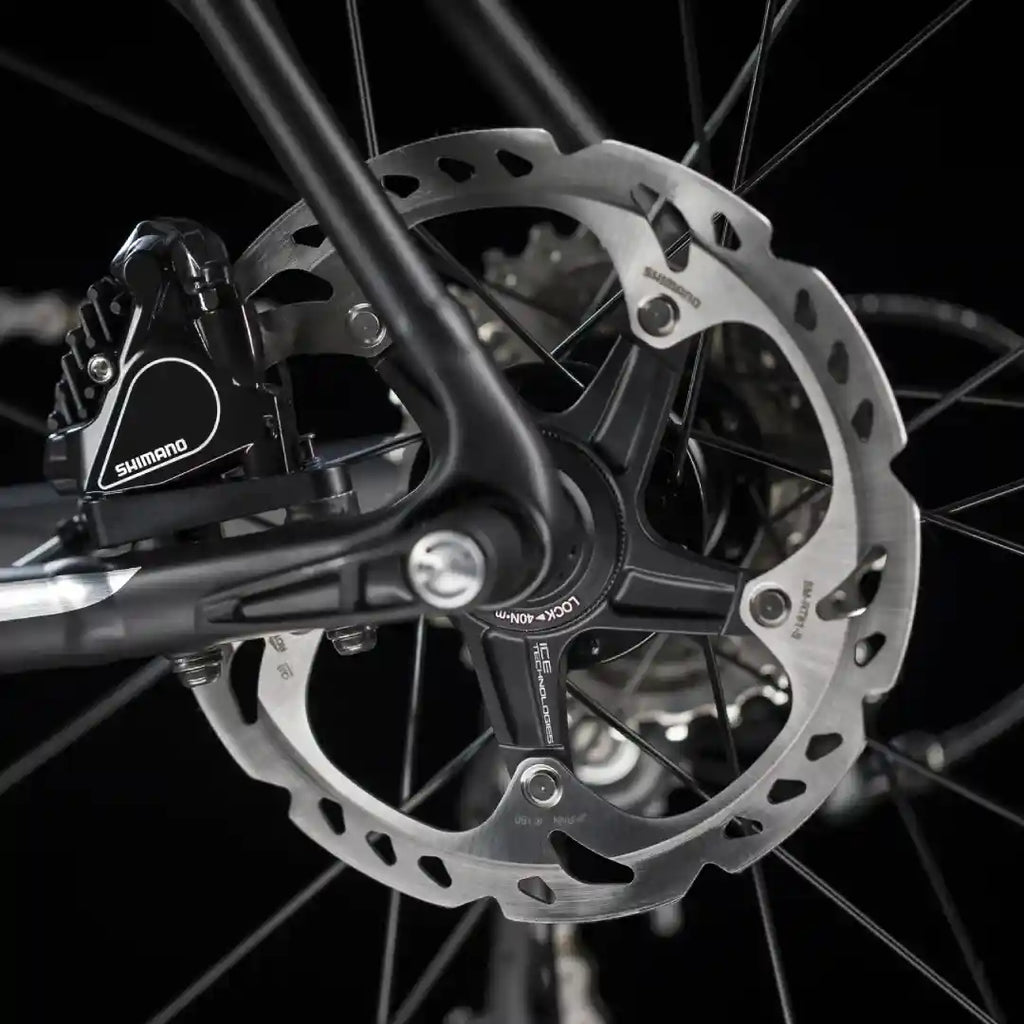

- Brake: Shimano Tiagra hydraulic disc.
- Brake Rotor: Shimano RT70, CentreLock, 160 mm.
This bike offers exceptional performance and handling, making it an ideal choice for riders seeking a responsive and reliable road cycling experience.
Sizing
Size |
Rider Height |
Inseam |
|---|---|---|
| 44 | 150 - 153 cm | 71 - 73 cm |
| 4'11" - 5'0" | 28" - 29" | |
| 50 | 158 - 163 cm | 74 - 77 cm |
| 5'2" - 5'4" | 29" - 30" | |
| 52 | 163 - 168 cm | 76 - 79 cm |
| 5'4" - 5'6" | 30" - 31" | |
| 54 | 168 - 174 cm | 78 - 82 cm |
| 5'6" - 5'9" | 31" - 32" | |
| 56 | 174 - 180 cm | 81 - 85 cm |
| 5'9" - 5'11" | 32" - 33" | |
| 58 | 180 - 185 cm | 84 - 87 cm |
| 5'11" - 6'1" | 33" - 34" | |
| 60 | 185 - 190 cm | 86 - 90 cm |
| 6'1" - 6'3" | 34" - 35" | |
| 62 | 190 - 195 cm | 89 - 92 cm |
| 6'3" - 6'5" | 35" - 36" |
