Description
The TREK Marlin 4 Gen 2 is the perfect gateway to trail riding, ideal for new riders who desire a mountain bike with knobby tires suitable for both trails and city commuting. With features like disc brakes, front suspension, 21 speeds, and mounts for racks and fenders, it's well-equipped for new trail riders and campus commuters alike.
Key Features:
- Versatile Riding Experience: Suitable for both trail riding and city commuting, offering durability and performance on various terrains.
- Lightweight Aluminum Frame: Features an aluminum frame with internal cable routing for sleek aesthetics and cable protection.
- 21-Speed Drivetrain: Provides a wide range of gearing options for tackling different terrains with ease.
- Powerful Disc Brakes: Mechanical disc brakes offer reliable stopping power in all conditions.
- Front Suspension Fork: Absorbs bumps and rough terrain to enhance ride comfort and control.
- Rack and Fender Mounts: Allows for the attachment of racks and fenders for added versatility and utility.
Specifications:
Frameset:
- Frame: Alpha Silver Aluminium with curved top tube (XS, S) or straight top tube (M, ML, L, XL, XXL), internal routing, rack and kickstand mount
- Fork: SR Suntour XCE 28 with coil spring, preload adjustment, 80-100mm travel (depending on size)
Wheels:
- Hub Front: Formula DC-20 alloy, 6-bolt, 100x5mm QR
- Hub Rear: Formula DC-31 alloy, 6/7/8-speed freewheel, 135x5mm QR
- Rim: Bontrager Connection double-wall alloy

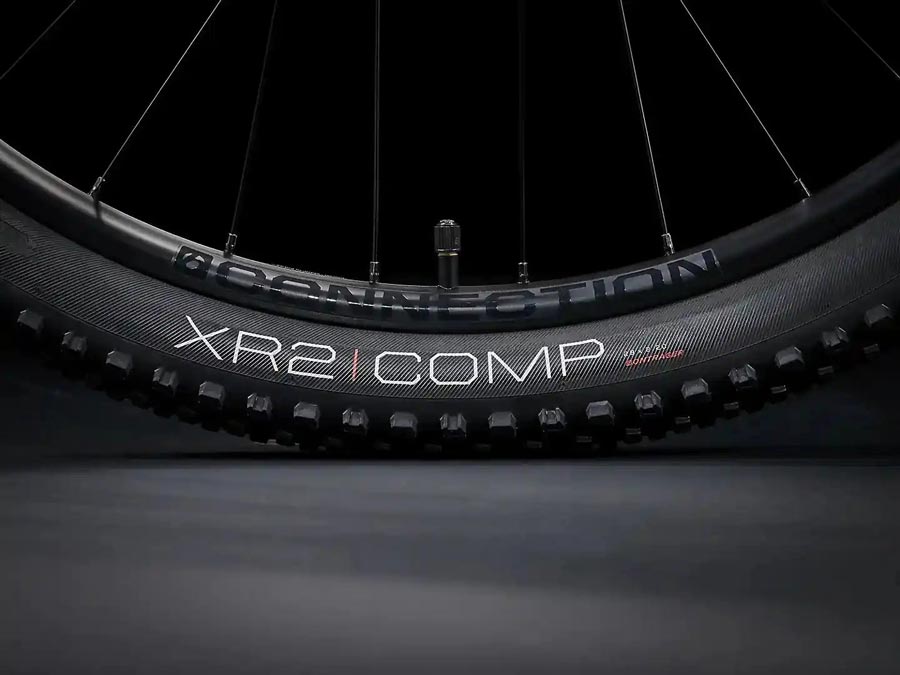

- Tyre: Bontrager XR2 Comp wire bead, 27.5x2.20" (XS, S) or 29x2.20" (M, ML, L, XL, XXL)
Drivetrain:
- Shifter: Shimano Altus EF500, 7-speed
- Front Derailleur: Shimano Tourney TY300
- Rear Derailleur: Shimano Tourney TY300
- Crank: Shimano Tourney TY301, 42/34/24T
- Cassette: Shimano TZ500, 14-28T, 7-speed
- Chain: KMC Z7, 7-speed
Components:
- Saddle: Bontrager Arvada
- Seatpost: Bontrager alloy, 31.6mm diameter, varying lengths based on size
- Handlebar: Bontrager alloy, 31.8mm diameter, varying widths and rises based on size
- Grips: Bontrager XR Endurance Comp
- Stem: Bontrager alloy, 31.8mm diameter, varying lengths based on size
- Headset: Semi-integrated, 1-1/8"
- Brake: Tektro MD-M280 (XS-XXL), Tektro MD-M281 (XS-XXL) mechanical disc, 160mm rotor
Weight:
- Weight: M - 14.40 kg / 31.75 lb
- Weight Limit: Maximum total weight limit of 136 kg (300 lb) for bicycle, rider, and cargo.
The TREK Marlin 4 Gen 2 offers excellent value for riders seeking an introductory mountain bike with versatile capabilities for both trail riding and city commuting. With its durable construction and well-rounded features, it's a reliable choice for riders of all skill levels.

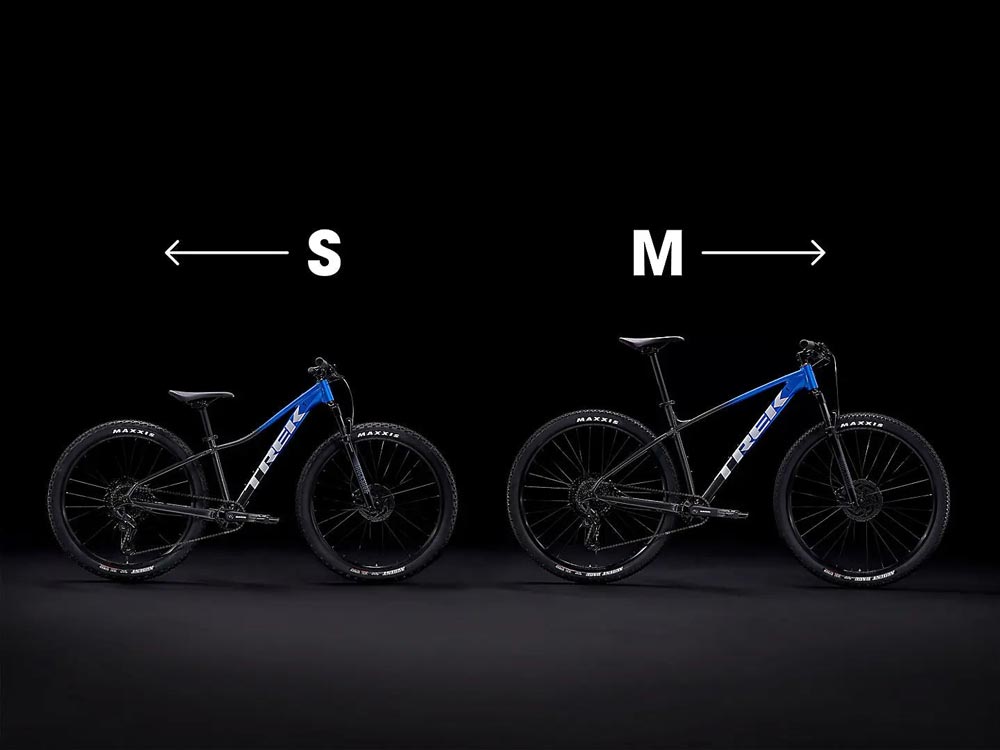

Sizing
Frame Size |
Rider Height |
Inseam |
|---|---|---|
| XS (13.5") | 145 - 155 cm | 69 - 73 cm |
| 4'9" - 5'1" | 27" - 29" | |
| S (15.5") | 155 - 165 cm | 74 - 78 cm |
| 5'1" - 5'5" | 29" - 31" | |
| M (17.5") | 165 - 176 cm | 79 - 83 cm |
| 5'5" - 5'9" | 31" - 33" | |
| M/L (18.5") | 173 - 180 cm | 81 - 86 cm |
| 5'8" - 5'11" | 32" - 34" | |
| L (19.5") | 177 - 188 cm | 84 - 89 cm |
| 5'10" - 6'2" | 33" - 35" | |
| XL (21.5") | 188 - 195 cm | 89 - 91 cm |
| 6'2" - 6'5" | 35" - 36" | |
| 2XL (23.0") | 195 - 203 cm | 91 - 97 cm |
| 6'5" - 6'8" | 36" - 38" |
