*Installation not included. Optional installation available for KD 10 — contact us to arrange.
This is the bike for you if you want race‑level aero performance without the ultra‑premium price. The Madone SL 6 Gen 8 blends climbing efficiency and wind‑cheating tube shapes so you can attack steep terrain or hilly rides with confidence.
*This Bike comes without pedals
Key highlights include:
Whether you’re competing, chasing a PR on a club ride or climbing hard in Kuwait’s terrain, this bike delivers premium race tech in a more attainable package.

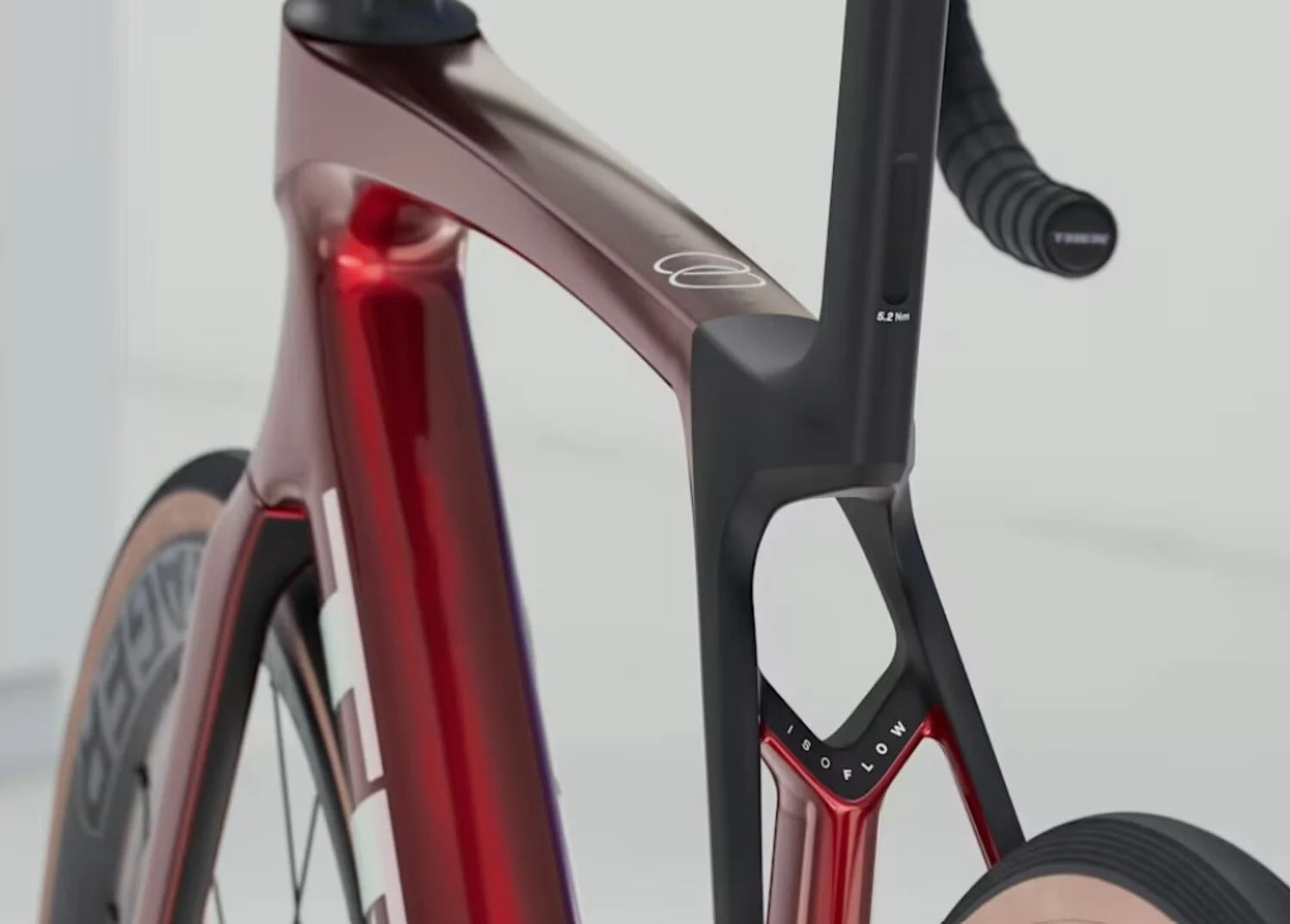

| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
|---|---|
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Weight | ML - 8.16 kg / 17.99 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Battery | Shimano BT-DN300 |
|---|---|
| Charger | Charging cable included |
| *Shifter |
Size: XS, S, M, ML, L, XL Shimano 105 R7170, 12-speed |
|---|---|
|
Size: XS, S, M, ML, L, XL Shimano 105 R7170 Di2, 12-speed |
|
| Front derailleur | Shimano 105 R7150 Di2, braze-on, down swing |
| Rear derailleur | Shimano 105 R7150 Di2, 36T max cog |
| *Crank |
Size: XS, S Shimano 105 R7100, 50/34, 165 mm length |
|
Size: M Shimano 105 R7100, 50/34, 170 mm length |
|
|
Size: ML, L Shimano 105 R7100, 50/34, 172.5 mm length |
|
|
Size: XL Shimano 105 R7100, 50/34, 175 mm length |
|
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 54T, 2x: 56/43 |
| Wheel front | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, 100x12 mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, Shimano 11/12-speed freehub, 142x12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Tyre | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | 32 mm (as measured, see manual for details) |
| *Saddle |
Size: XS, S Bontrager Aeolus Comp, steel rails, 155 mm width |
|---|---|
|
Size: XS, S, M, ML, L, XL Verse Short, steel rails, 145 mm width |
|
|
Size: M, ML, L, XL Bontrager Aeolus Comp, steel rails, 145 mm width |
|
| *Seatpost |
Size: XS, S, M, XL Madone aero carbon seat post, 0 mm offset, short length |
|
Size: ML, L Madone aero carbon seat post, 0 mm offset, long length |
|
| *Handlebar |
Size: XS Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width |
|
Size: S, M Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width |
|
|
Size: ML, L Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width |
|
|
Size: XL Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
|
| Handlebar tape | Trek EcoTack, black |
| *Stem |
Size: XS Trek RCS Pro, -7-degree, 80 mm length |
|
Size: S, M Trek RCS Pro, -7-degree, 90 mm length |
|
|
Size: ML, L Trek RCS Pro, -7-degree, 100 mm length |
|
|
Size: XL Trek RCS Pro, -7-degree, 110 mm length |
|
| Brake rotor | Shimano RT70, CentreLock, 160 mm |
| Rotor size |
Max brake rotor sizes: 180 mm front, 160 mm rear |
| Size | Rider Height | Inseam |
| XS | 143 - 158 cm | 67 - 74 cm |
| 4'8" - 5'2" | 26" - 29" | |
| S | 158 - 162 cm | 74 - 76 cm |
| 5'2" - 5'4" | 29" - 30" | |
| M | 162 - 173 cm | 76 - 81 cm |
| 5'4" - 5'8" | 30" - 32" | |
| ML | 173 - 179 cm | 81 - 84 cm |
| 5'8" - 5'10" | 32" - 33" | |
| L | 179 - 188 cm | 84 - 88 cm |
| 5'10" - 6'2" | 33" - 35" | |
| XL | 188 - 213 cm | 88 - 100 cm |
| 6'2" - 7'0" | 35" - 39" |
