*Installation not included. Optional installation available for KD 10 — contact us to arrange.
| Component | Specifications |
|---|---|

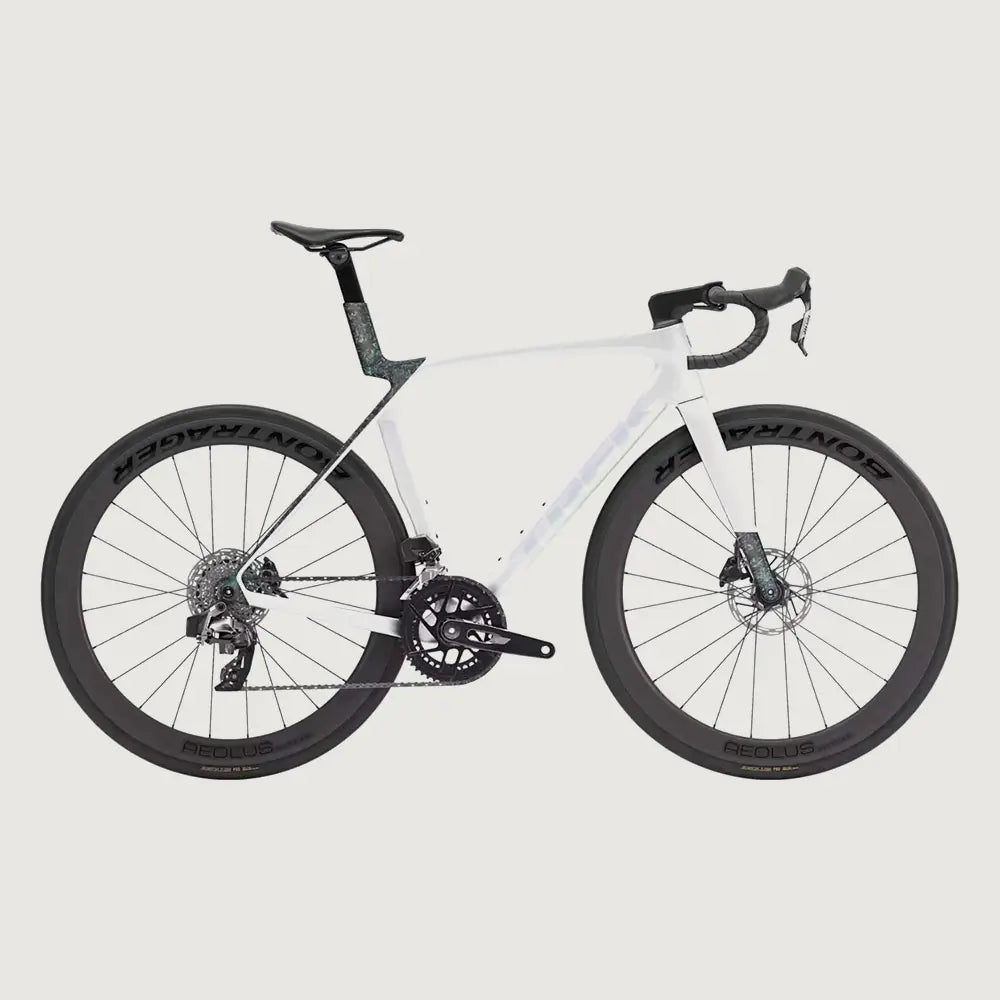

| Frame | 500 Series OCLV Carbon, Full System Foil aero tube shaping, internal routing, UDH 142×12mm thru‑axle |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat‑mount disc, 12×100mm thru‑axle |

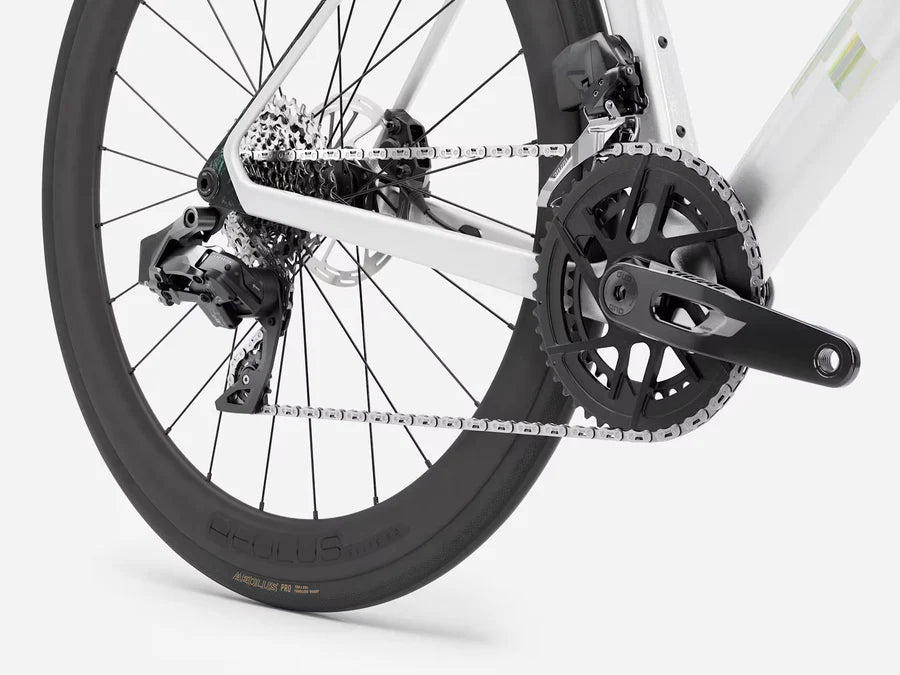

| Drivetrain | SRAM Rival AXS wireless 2×12 speed (varying crank lengths by size) |
| Wheels | Premium carbon wheels, tubeless‑ready, rim depth ~35 mm in stock spec |
| Tyres | 700×28mm (tubeless‑ready) in listed spec |
| Brake System | Disc brakes, centre‑lock rotors (~160mm typical) |
| Weight (approx) | Around 8.4 kg / 18.6 lbs (size M/L, with no tubes and TLR sealant) |
| Rider + Bike Limit | Up to ~125 kg combined |
This is a race‑geometry bike and choices between sizes should consider flexibility, preferred riding position, and your style (aggressive vs more upright). We recommend an in‑store fit to dial it in for best comfort and performance.
| Size | Rider Height | Inseam |
| XS | 143 - 158 cm | 67 - 74 cm |
| 4'8" - 5'2" | 26" - 29" | |
| S | 158 - 162 cm | 74 - 76 cm |
| 5'2" - 5'4" | 29" - 30" | |
| M | 162 - 173 cm | 76 - 81 cm |
| 5'4" - 5'8" | 30" - 32" | |
| ML | 173 - 179 cm | 81 - 84 cm |
| 5'8" - 5'10" | 32" - 33" | |
| L | 179 - 188 cm | 84 - 88 cm |
| 5'10" - 6'2" | 33" - 35" | |
| XL | 188 - 213 cm | 88 - 100 cm |
| 6'2" - 7'0" | 35" - 39" |
