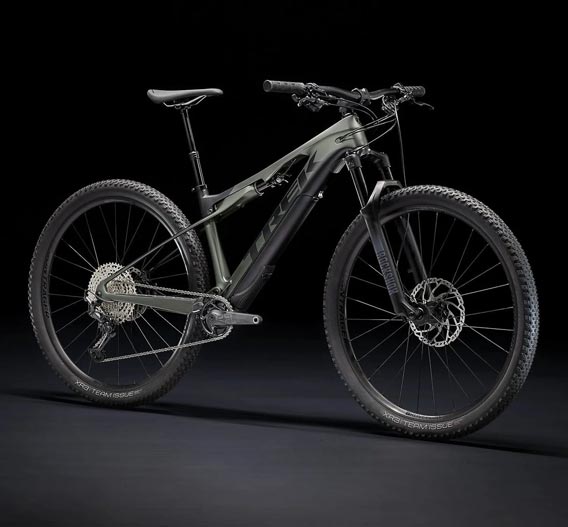

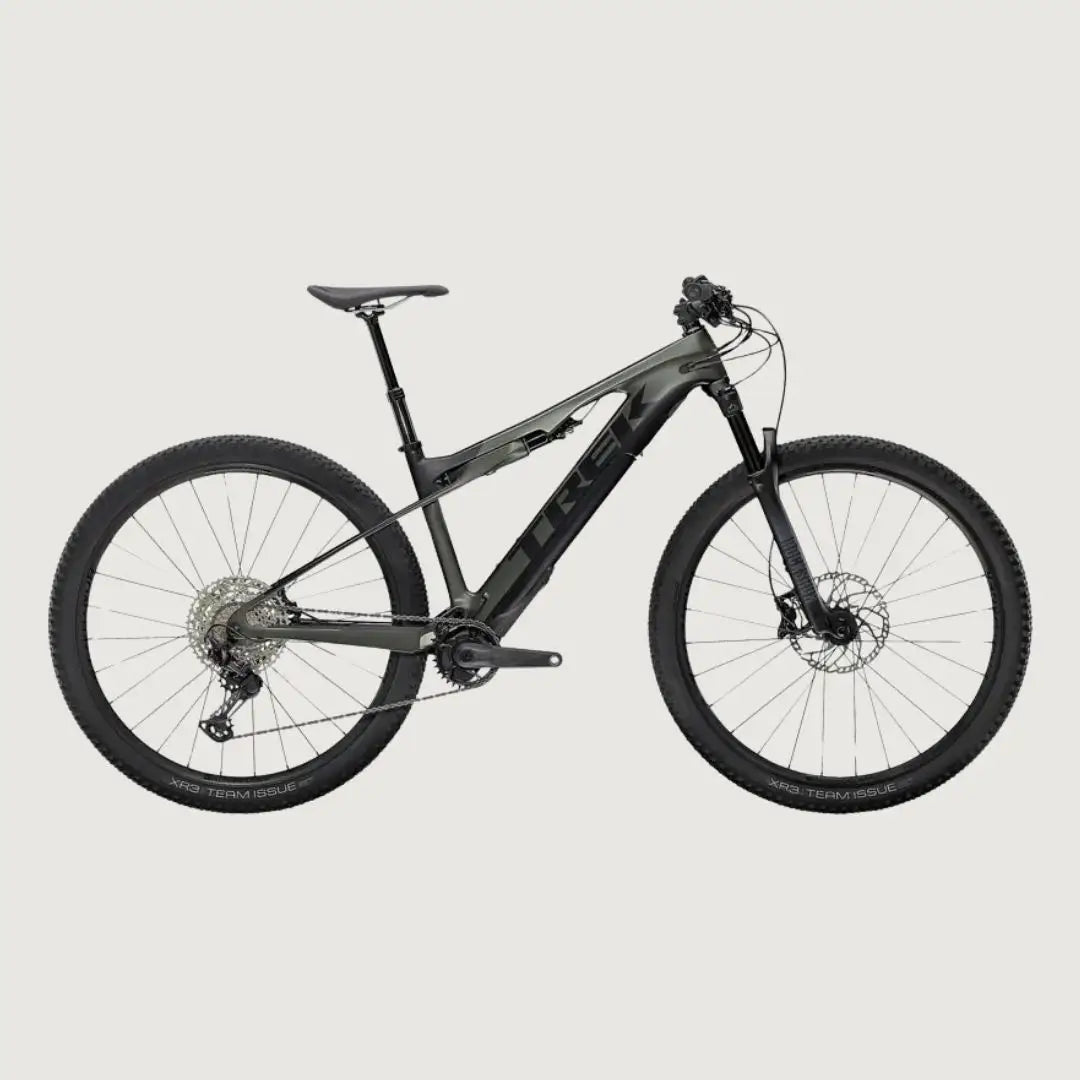

Trek E-Caliber 9.6 E-Bike

The Trek E-Caliber 9.6 is a carbon electric mountain bike designed to provide an authentic cross-country riding experience with the added boost of a compact Fazua drive system.

Features:

1. Fazua Drive System: Provides subtle, natural-feeling assistance that complements the physical and technical challenges of the trail without overpowering the rider.

2. Compact and Lightweight: The Fazua drive system is compact and lightweight, allowing the bike to ride and feel like a traditional cross-country bike.

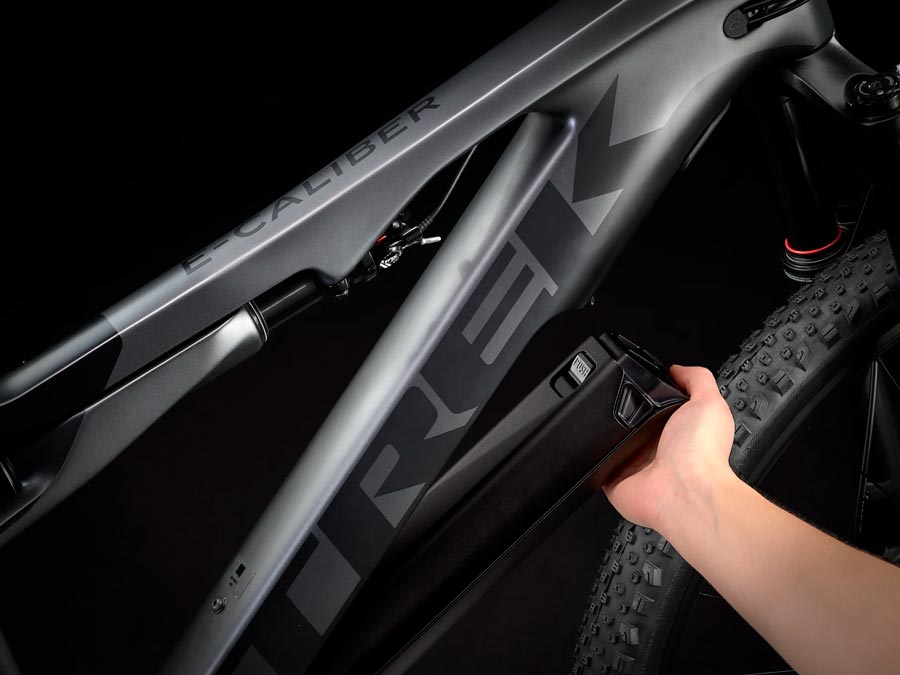

3. Removable Drive Pack: The motor and drive pack are easily removable, reducing the weight of the bike by 6.4 lbs (2.9 kg) when not needed.

4. IsoStrut Rear Suspension: Offers 60mm of integrated rear travel, providing just enough comfort and traction for cross-country riding without the weight or flex of traditional full suspension.

5. OCLV Mountain Carbon Frame: Constructed with Trek's mountain-specific carbon fiber for durability, advanced engineering, and rigorous testing.

6. Intelligent Fazua Software (BLACK PEPPER): Ensures immediate motor response when pedaling, delivers power over a wider cadence range, and allows for user customization.

7. Smartphone App Compatibility: The Fazua drive system is compatible with a smartphone app for checking battery status and customizing ride settings.

8. Pivotless Seat Stays: Actively bend to absorb trail chatter, saving weight while enhancing comfort and traction.

9. Comes without Pedals.


Specifications:

Frame:

• OCLV Mountain Carbon main frame and stays with IsoStrut rear suspension, tapered head tube, Knock Block, Control Freak internal routing, Boost148, and 60mm travel.

Fork:

• RockShox 35 Gold RL with DebonAir spring, Motion Control damper, remote lockout, tapered steerer, 44mm offset, Boost110, and 120mm travel.

Shock:

• Trek IsoStrut with Fox Performance shock, air spring, DPS 2-position remote damper, 235mm x 32.5mm.

Wheels:

• Front Wheel: Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''.
• Rear Wheel: Bontrager Kovee Comp 23, Tubeless Ready, Shimano Microspline freehub, Rapid Drive 108, Boost148, 29''.
• Rear Skewer: Bontrager Switch thru axle, removable lever.
• Max Tire Size: Frame: 29x2.40", Fork: See manufacturer recommendations.

E-Bike System:

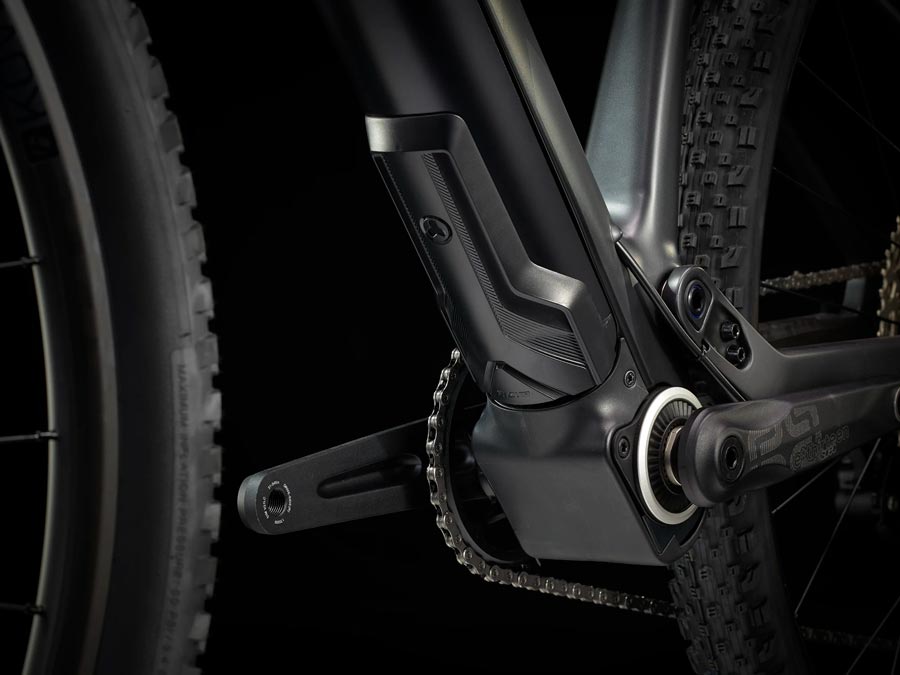

• Fazua Ride Trail 50 motor.

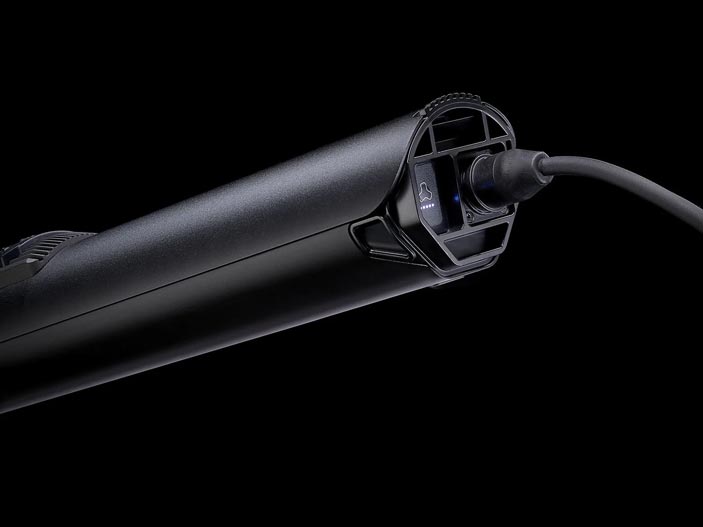

• Fazua Evation battery (250Wh).
• Fazua Evation charger (90-120V).

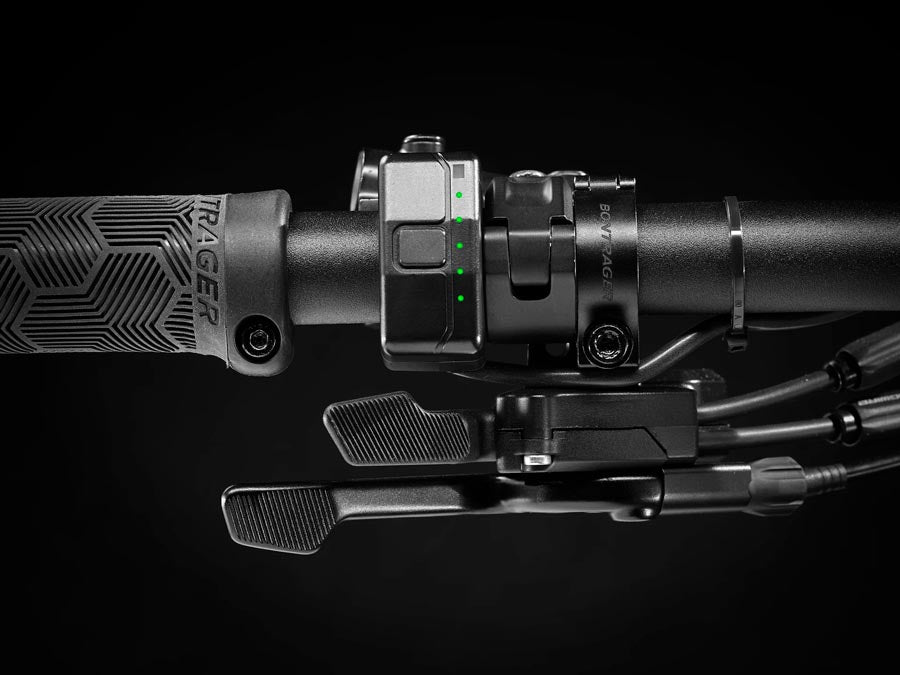

• Fazua Remote bX controller.

Drivetrain:

• Shimano Deore M6100 12-speed shifters.
• Shimano XT M8100 long cage rear derailleur.
• Ethirteen Espec Plus crank arm (170mm length for sizes S, M, L; 175mm length for size XL).
• Shimano Deore M6100 12-speed cassette (10-51).
• Shimano Deore M6100 12-speed chain.
• Max Chainring Size: 32T.

Components:

• Bontrager Arvada saddle with hollow chromoly rails (138mm width).
• TranzX JD-YSP18 seatpost with internal routing (100mm travel for size S, 130mm travel for sizes M, L, XL).
• Bontrager Comp alloy handlebar (720mm width for size S, 750mm width for sizes M, L, XL).
• Bontrager XR Trail Comp grips with nylon lock-on.
• Bontrager Rhythm Comp alloy stem (60mm length for sizes S, M; 70mm length for sizes L, XL).
• Knock Block Integrated headset with 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom.

Brakes:

• Shimano 4-piston hydraulic disc brakes (MT4100 lever, MT420 caliper for sizes S, M, L, XL).
• Shimano hydraulic disc brakes (MT4100 lever, MT420 4-piston caliper for sizes S, M, L, XL).
• Shimano RT66 6-bolt brake rotors (180mm for sizes S, M, L, XL; 203mm for sizes S, M, L, XL).

Weight:

• Weight for size M: 18.48 kg / 40.75 lbs (with TLR sealant, no tubes).
• Weight Limit: Maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
