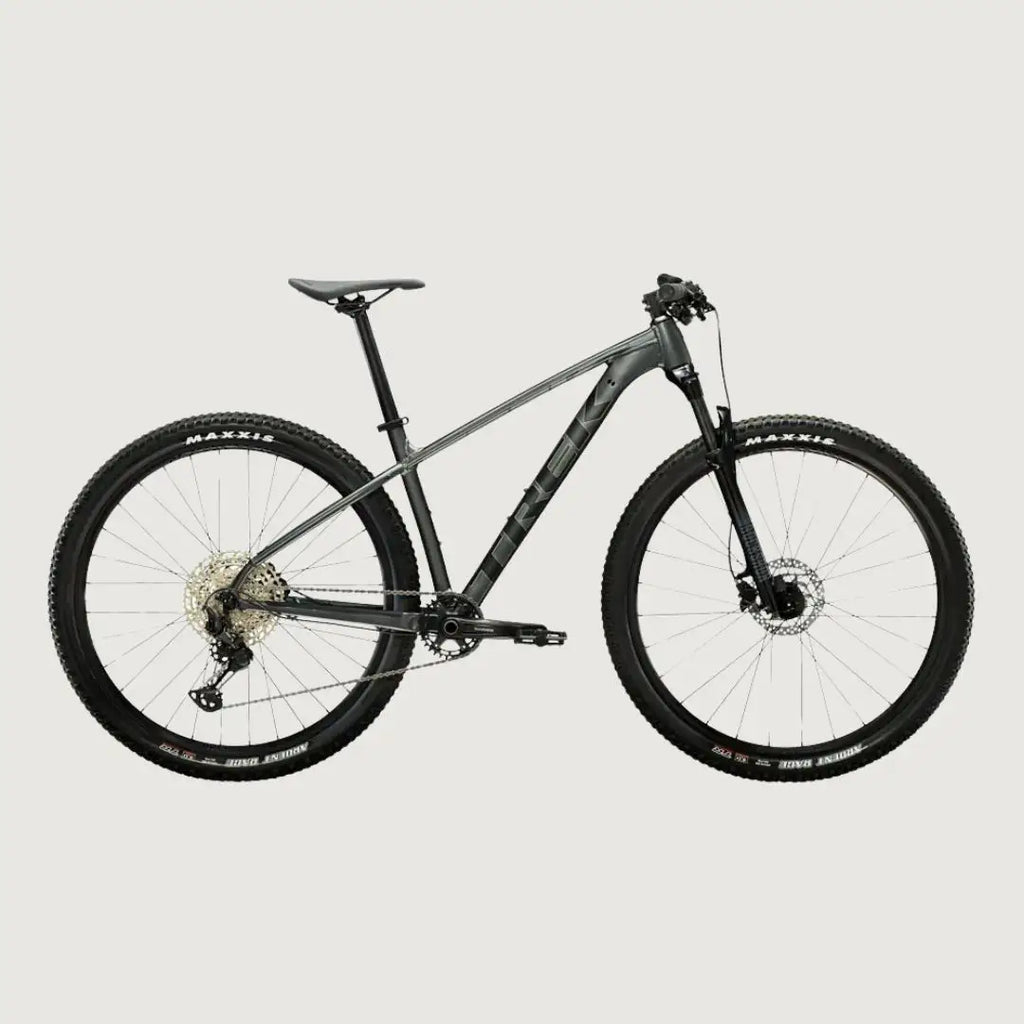

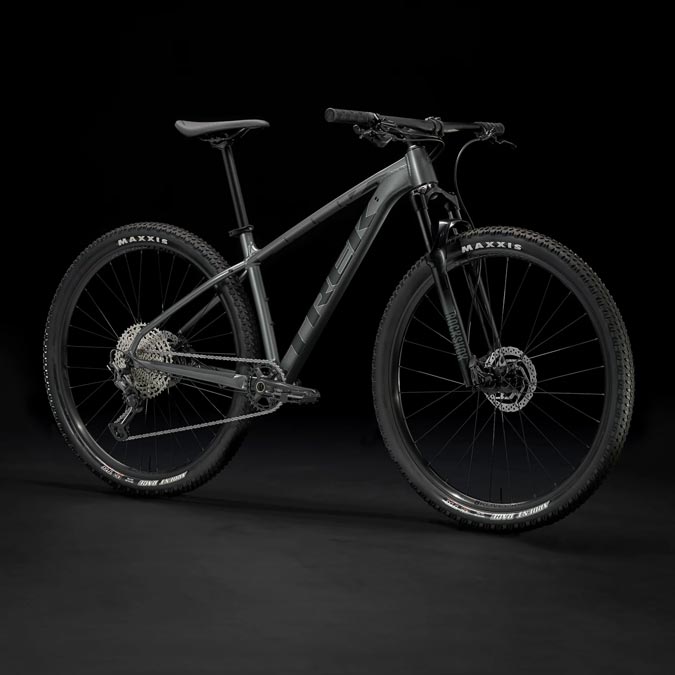

Trek X-CALIBER 8 Mountain Bike

The Trek X-Caliber 8 Mountain Bike is a cross-country powerhouse designed for speed and agility on singletracks, making it perfect for races, marathons, and competitive group rides. With its lightweight frame, RockShox suspension fork, and Shimano drivetrain, it offers reliable performance and thrilling adventures.

Overview:

It's right for you if...

• You're seeking a fast mountain bike for singletrack adventures, whether it's for casual rides, races, or marathons. You want a bike equipped with dependable, lightweight components for a fun and thrilling riding experience.

The tech you get:

• A lightweight Alpha Gold Aluminum frame with a tapered head tube, internal routing for cables and dropper post, rack & kickstand mount, and Boost141 hub spacing.

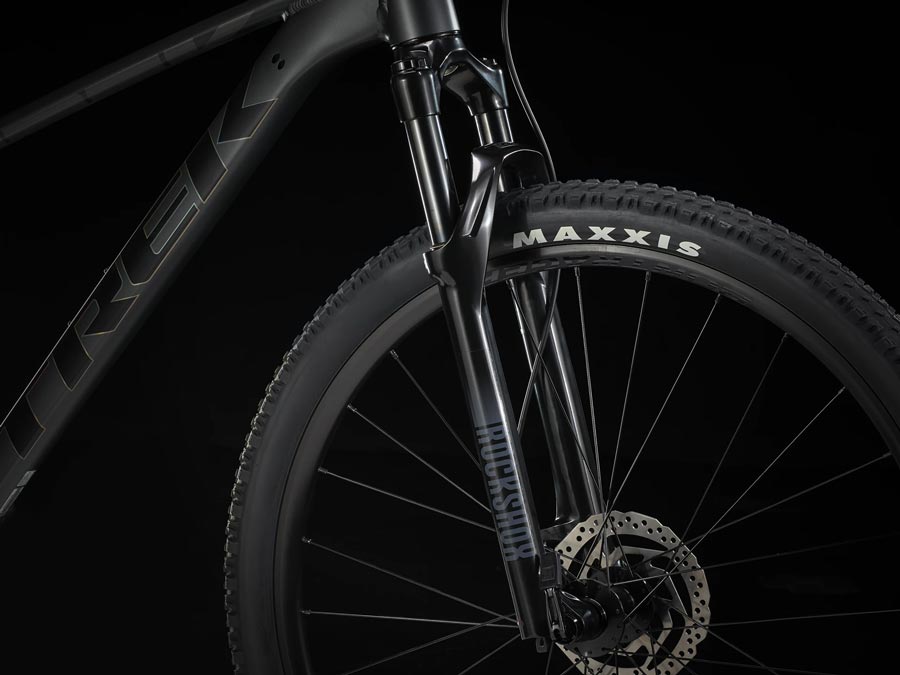

• A RockShox Judy SL suspension fork with Solo Air spring, TurnKey lockout, and tapered steerer for precise handling and control.
• Tubeless-ready wheels with Boost141 hub spacing for enhanced stability and agility on the trail.
• A Shimano Deore 1x12 drivetrain with a wide-range cassette for smooth and efficient gear transitions.

The final word: With the X-Caliber 8, you're getting a performance-oriented frame paired with high-quality components like the RockShox air fork and Shimano Deore drivetrain. Its durable alloy rims save weight and can be easily upgraded to tubeless for even more performance gains.

Why you'll love it:

• It offers the performance of a higher-end hardtail at the price of a basic one.
• The frame is compatible with premium upgrades like race wheels and a dropper post for enhanced performance.
• Smart Wheel Sizing ensures you get the fastest wheel size that fits your frame, with larger 29˝ wheels on bigger frames and 27.5˝ wheels on smaller frames.
• The 1x drivetrain delivers a wide range of gearing with the simplicity of a single shifter.

Features:

High tech frame:

• The Alpha Gold Aluminum frame is loaded with features for improved ride quality. A tapered head tube provides precise, confident handling, while Boost 141 rear hub spacing results in shorter chainstays for nimble handling.

Built for speed:

• The X-Caliber is a classic XC hardtail designed for quick handling, weight-conscious components, and just enough suspension to smooth out bumps. It's built for efficiency, making it ideal for racers and riders who want to cover more ground in less time.

Shimano XT:

• The Shimano XT groupset is a legendary mountain bike component trusted by generations of riders worldwide. With reliable shifting, superior braking, and intuitive maintenance, XT provides high-performance solutions for all types of mountain biking.

Specifications:

Frameset:

• Frame: Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR
• Fork:
  • Size: XS: RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Lite, 80mm travel
  • Size: S: RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15mm Maxle Lite, 100mm travel
  • Size: M, M/L, L, XL, XXL: RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 100mm travel
  • Max compatible fork travel: 120mm, XS: 100mm

Wheels:

• Hub front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
• Hub rear: Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5mm QR
• Rim:
  • Size: XS, S, M, M/L, L, XL, XXL: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
  • Size: XS, S, M, M/L, L, XL, XXL: Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve
• Spokes: 14g stainless steel, black
• Tire:
  • Size: XS, S: Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35''

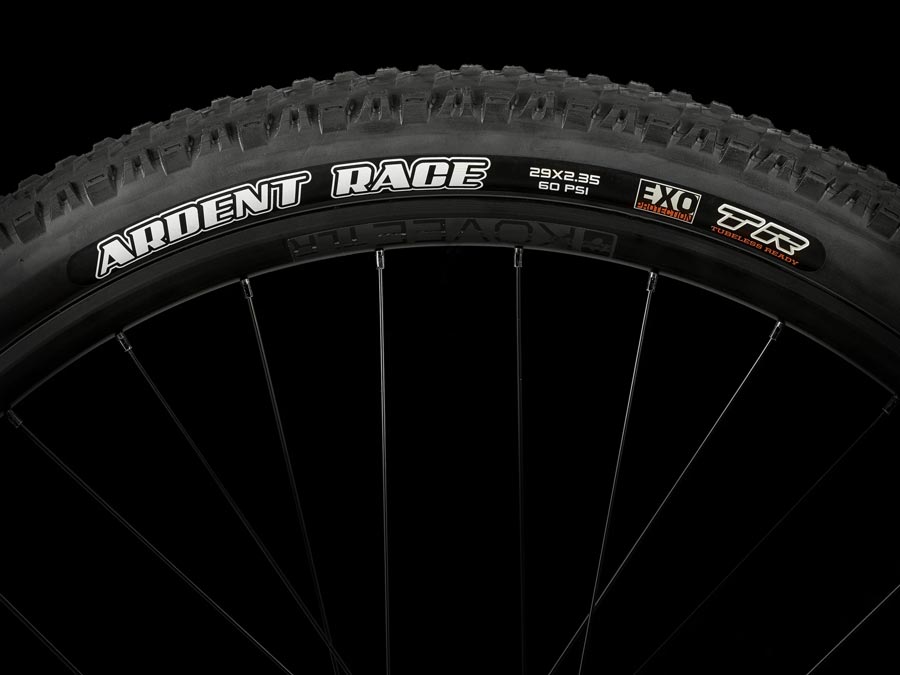

  • Size: M, M/L, L, XL, XXL: Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35''
• Tire part: Bontrager TLR sealant, 6oz
• Rim strip: Bontrager TLR
• Max tire size: Frame: 27.5x2.80" or 29x2.40", Fork: See manufacturer

Drivetrain:

• Shifter: Shimano Deore M6100, 12 speed

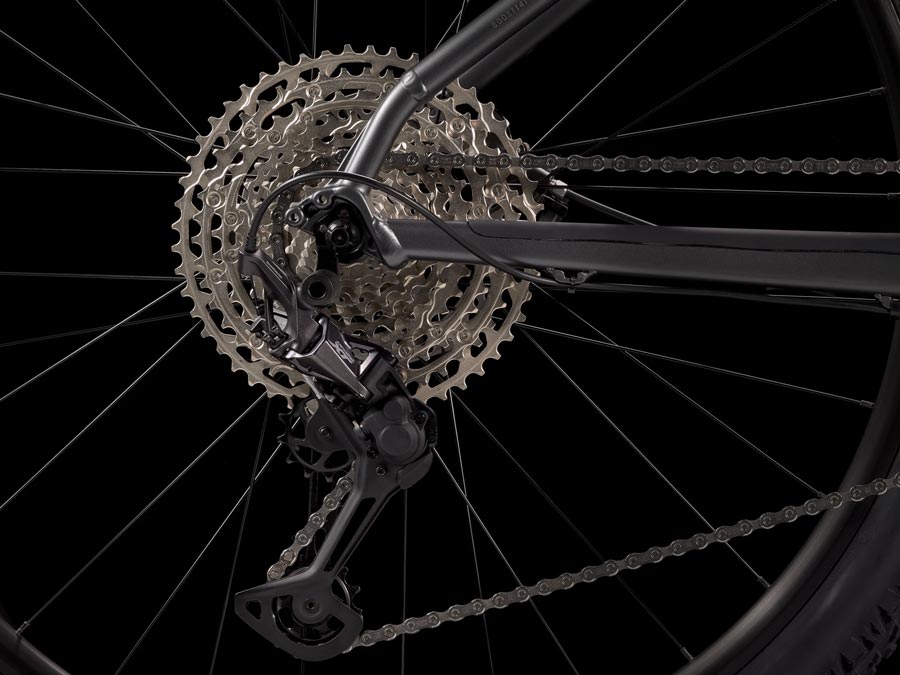

• Rear derailleur: Shimano XT M8100, long cage
• Crank:

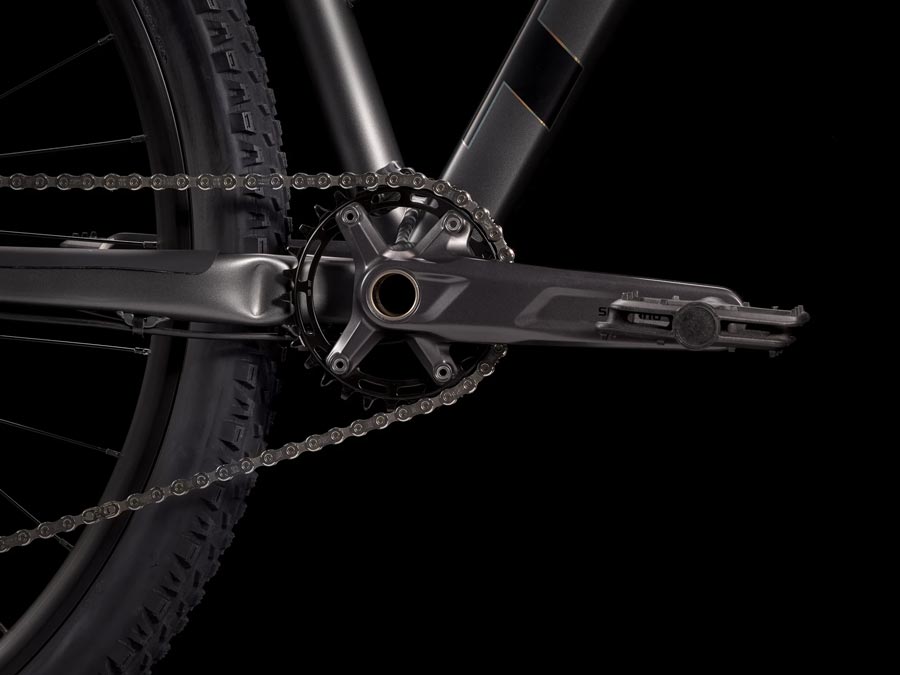

  • Size: XS, S, M: Shimano MT511, 30T steel ring, 52mm chainline, 170mm length
  • Size: M/L, L, XL, XXL: Shimano MT511, 30T steel ring, 52mm chainline, 175mm length
• Bottom bracket:
  • Size: XS, S, M, M/L, L, XL, XXL: Shimano BB-MT501 BSA
  • Size: XS, S, M, M/L, L, XL, XXL: Shimano SM-BB52, 73mm, threaded external bearing
• Cassette: Shimano Deore M6100, 10-51, 12 speed
• Chain: Shimano Deore M6100, 12 speed
• Pedal: VP-536 nylon platform
• Max chainring size: 1x: 32T

Components:

• Saddle: Bontrager Arvada, steel rails, 138mm width
• Seatpost:
  • Size: XS, S: Bontrager alloy, 31.6mm, 12mm offset, 330mm length
  • Size: M: Bontrager alloy, 31.6mm, 12mm offset, 360mm length
  • Size: M/L, L, XL, XXL: Bontrager alloy, 31.6mm, 12mm offset, 400mm length
• Handlebar:
  • Size: XS: Bontrager alloy, 31.8mm, 5mm rise, 690mm width
  • Size: S, M: Bontrager alloy, 31.8mm, 5mm rise, 720mm width
  • Size: M/L, L, XL, XXL: Bontrager alloy, 31.8mm, 15mm rise, 750mm width
• Grips: Bontrager XR Trail Comp, nylon lock-on
• Stem:
  • Size: XS, S: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length
  • Size: M, M/L: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
  • Size: L: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
  • Size: XL, XXL: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
• Headset: Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom
• Brake: Shimano MT200 hydraulic disc
• Brake rotor:
  • Size: XS, S, M, M/L, L, XL, XXL: Shimano RT26, 6-bolt,160mm
  • Size: L, XL, XXL: Shimano RT26, 6-bolt,180mm
• Brake Set: Shimano MT200 hydraulic disc

Weight:

• M: 13.05 kg / 28.78 lbs
• Weight limit: Maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
