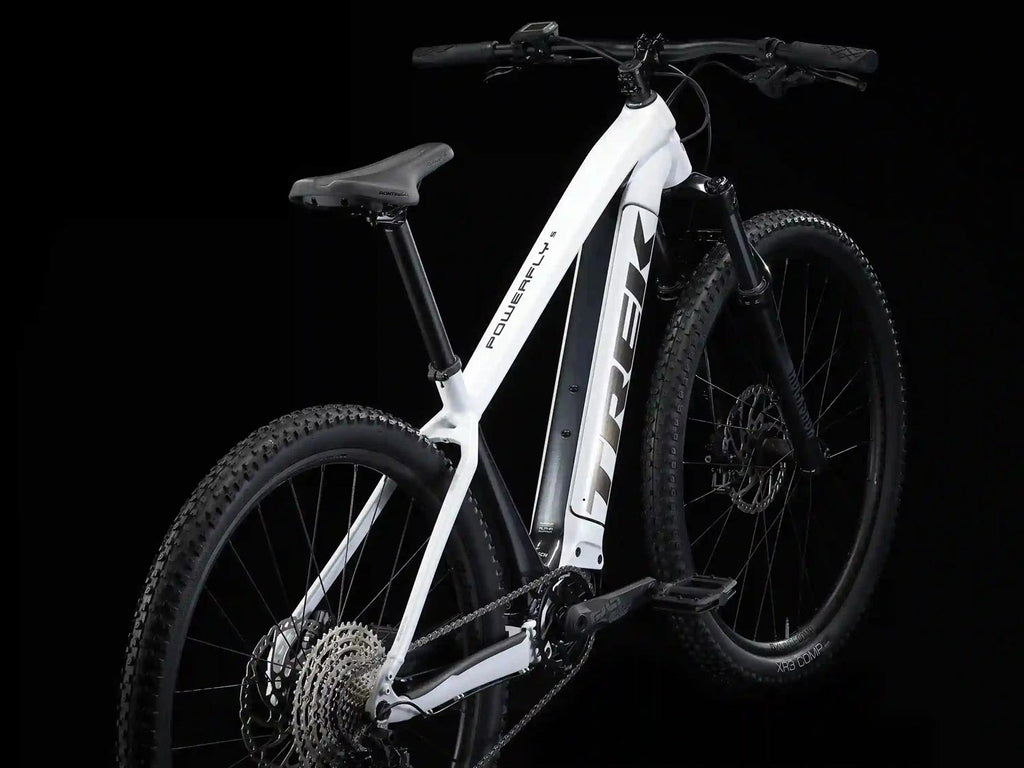

Trek Powerfly 5 Gen 3 E-Bike

The POWERFLY 5 GEN 3 E-BIKE is a highly capable electric mountain bike designed for exceptional value. Featuring a high-end Bosch e-MTB drive system, it combines robust mountain bike components that are built to withstand the rigors of trail riding.

The bike incorporates Trek's user-friendly Removable Integrated Battery (RIB) system, which fully encases the battery within the frame without requiring any tools for removal. With its versatile and capable design, the POWERFLY 5 is ready to tackle any adventure you throw its way.

Frame:

• Alpha Platinum Aluminium construction
• Removable Integrated Battery (RIB) system
• Tapered head tube
• Control Freak internal routing
• Motor Armor for protection
• Boost148 for increased tire clearance

Fork:

• RockShox Recon Silver RL with Solo Air spring
• Motion Control damper
• Lockout feature
• Tapered steerer
• Boost110
• Maxle Stealth
• 80mm travel for size XS
• 120mm travel for sizes S, M, L, XL
• Max compatible fork travel: 120mm (XS & S: 100mm)

Wheels:

• Bontrager alloy hubs with sealed bearings
• Alloy axle
• 6-bolt disc attachment
• Boost110 front, Boost148 rear
• 15mm thru axle front, 12mm thru axle rear
• Bontrager Kovee Comp rims with double-wall construction
• Tubeless Ready
• 28-hole
• 23mm width
• Bontrager XR3 Comp tires (29x2.30")
• Max tire size: 29x2.60" or 27.5x2.8" (XS & S: 27.5x2.60") for frame, fork size varies

Drivetrain:

• Shimano Deore M6100 12-speed shifters
• Shimano XT M8100 long cage rear derailleur
• Ethirteen Espec Plus crankset (34T, 165mm length)
• Shimano Deore M6100 12-speed cassette (10-51)
• Shimano Deore M6100 chain
• VP-536 nylon platform pedals
• Max chainring size: 38T

Components:

• Bontrager Commuter Comp saddle
• Bontrager alloy seatpost with various lengths depending on frame size
• Bontrager alloy handlebar with varying widths and rises depending on frame size
• Bontrager XR Endurance Comp lock-on grips
• Bontrager Comp alloy stem with varying lengths depending on frame size
• FSA IS-2 headset (1-1/8" top, 1.5" bottom)
• Shimano 4-piston hydraulic disc brakes with MT4100 lever and MT420 caliper
• Shimano RT66 brake rotors with sizes varying depending on frame size

Accessories:

• Bosch PowerTube 625 battery
• Bosch compact 2A charger with smart system
• Bosch Purion controller
• Bosch Performance CX motor with magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist (32 km/h for New Zealand)

Weight:

• Medium size: 22.94 kg / 50.58 lb
• Weight limit: Maximum total weight limit of 136 kg (300 lb) (combined weight of bicycle, rider, and cargo)
